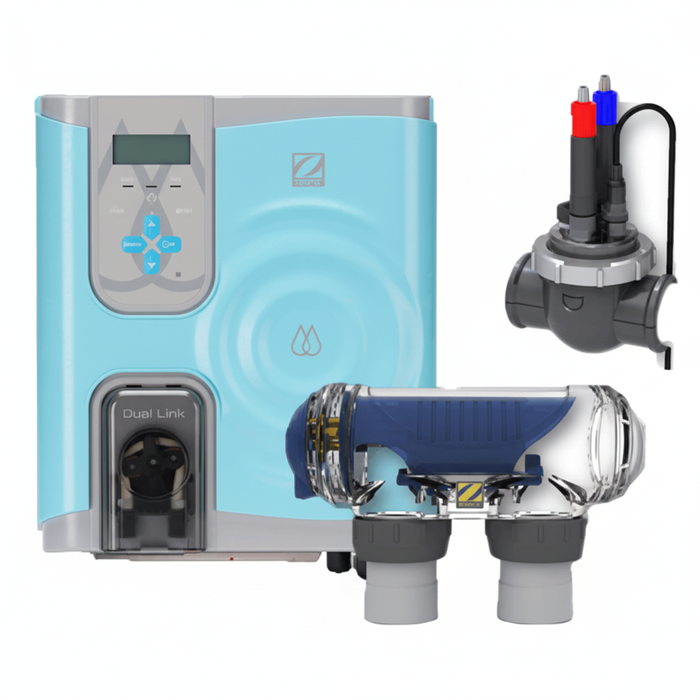

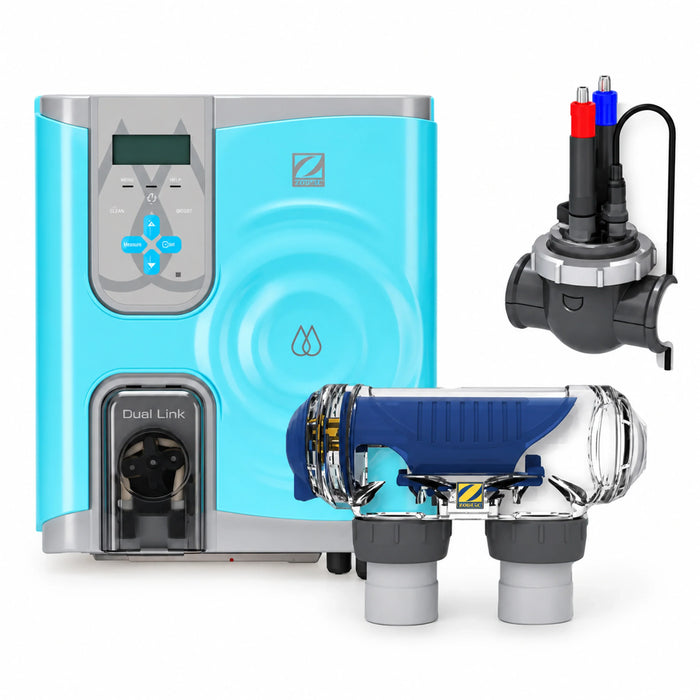

MagnaPool Hydroxinator iQ PRO Large | Mineral Pool Chlorinator | 35g/hr | Up to 100,000L
The MagnaPool Hydroxinator iQ PRO Large is a premium mineral pool chlorinator engineered for pool owners who demand more than basic sanitisation. Combining built-in pH sensing, ORP monitoring, Wi-Fi connectivity, and smart pump control in a single integrated system, the iQ PRO Large removes the guesswork from pool water management and delivers a more refined, automated ownership experience. Designed for mineral pools up to 100,000 litres (mild climate basis).
Product Specifications
| Brand | MagnaPool by Zodiac |
| Model | Hydroxinator iQ PRO Large |
| SKU | WW000199PRO |
| Chlorine Output | 35g/hr |
| Maximum Pool Size | 100,000L (mild climate basis) |
| Recommended Salinity | 4,000 ppm |
| Plumbing Size | 40mm / 50mm |
| Power Supply | 110-240 VAC, 50/60 Hz |
| Operating Power | 197W |
| Power Pack Dimensions | 370 x 320 x 100mm |
| Cell Dimensions | 160 x 320 x 110mm |
| Connectivity | Built-in Wi-Fi, iAquaLink compatible |
| Warranty | 4 years (full unit - power pack, cell, and all components) |
Key Features
- Built-In pH and ORP Automation. Premium-grade gold tip ORP sensor and pH sensor continuously monitor water balance and sanitisation effectiveness, reducing manual testing.
- Wi-Fi and iAquaLink Compatibility. Monitor and control your pool remotely from your smartphone via the iAquaLink app.
- Smart Temperature Sensor. Automatically reduces chlorine output in cold water to protect the ultra-long-life RP cell and extend its working life.
- Ultra-Long-Life RP Cell. Engineered for durability in a premium mineral pool environment.
- Variable-Speed Pump Control. Compatible with Zodiac RS485-enabled variable-speed pumps for integrated system management.
- Pool Cover Mode. Reduces chlorine output automatically when an automatic cover is connected to avoid over-chlorination.
- Three Operating Modes. Normal (0-100%), Low (0-30%), and Boost (100% for 24 hours) give flexible control to match actual pool conditions.
- 4-Year Warranty. Full 4-year warranty covering the entire unit - power pack, cell, and all components.
Operating Modes
- Normal Mode. Adjustable from 0-100% output in 10% increments for precise day-to-day control.
- Low Mode. Operates at 0-30% output, ideal for cooler months or periods of reduced pool use.
- Boost Mode. Runs at 100% output for 24 hours to address elevated demand after heavy use or adverse conditions.
Important notes: The 100,000L capacity rating is based on a mild climate - pools in warmer climates or with higher bather loads may require a different model. Pool light control requires the addition of a separate relay box (WW000222, sold separately). Variable-speed pump communication via RS485 is confirmed for Zodiac RS485-enabled pumps only.
Complete Your MagnaPool System
- MagnaPool Minerals 10kg - 100% sodium-free mineral pool treatment.
- MagnaPool Minerals 200kg (20 x 10kg) - bulk supply for new fills or seasonal top-up.
- MagnaPool Test Strips 25pk - accurately measures magnesium hardness in mineral pools.
Recommended Accessories
- 5-in-1 Test Strips - test pH, chlorine, and alkalinity alongside automated monitoring.
- pH Increaser (Soda Ash) 4kg - maintain pH balance in your mineral pool.
- Alkalinity Increaser 4kg - stabilise Total Alkalinity for consistent chlorinator performance.
Frequently Asked Questions
Q: What size pool is the iQ PRO Large suitable for?
A: The iQ PRO Large is rated for pools up to 100,000L on a mild climate basis. Pools in warmer climates or with higher bather loads may require additional consideration. Contact us if you are unsure which model suits your pool.
Q: Does it automate pH dosing?
A: The iQ PRO Large includes built-in pH and ORP sensors that continuously monitor water balance and sanitisation effectiveness. Automated pH dosing requires a compatible dosing pump connected to the system.
Q: How does the Wi-Fi control work?
A: The unit has a built-in Wi-Fi chip and is compatible with the iAquaLink app, allowing you to monitor and adjust your pool system remotely from your smartphone.
Q: Is it compatible with variable-speed pumps?
A: Yes - variable-speed pump communication via RS485 is supported for Zodiac RS485-enabled pumps. Compatibility with other brands is not confirmed.
Q: Can I control my pool lights with this unit?
A: Yes - pool light control is supported with the addition of a separate relay box (WW000222), which is sold separately.
Q: What warranty does it come with?
A: The Hydroxinator iQ PRO Large includes a 4-year manufacturer warranty covering the full unit - power pack, cell, and all components. Retain your proof of purchase and contact us if you experience a fault within the warranty period.
