Zodiac CS100 Replacement Filter Cartridge | Jandy Compatible | 227x592mm
Zodiac CS100 or Jandy CS100 cartridge due for replacement? This is the correct replacement cartridge for both systems, manufactured to OEM specifications with high-density pleated polyester media for reliable, long-running filtration.
Product Specifications
| Compatible Systems | Zodiac CS100, Jandy CS100 cartridge filters |
| Outer Diameter | 227mm |
| Length | 592mm |
| Centre Hole | 102mm diameter |
| Filter Media | High-grade pleated polyester |
| Filtration Efficiency | Captures particles 10-15 microns |
| End Cap Material | Reinforced plastic |
| Max Operating Temp | 60°C |
| Recommended Lifespan | 12-18 months with proper maintenance |
Key Features
- Exact-fit replacement. Manufactured to OEM specifications for Zodiac CS100 and Jandy CS100 systems.
- High-density pleated media. Captures fine particles, dirt, oils, and debris down to 10-15 microns.
- Chemical resistant. Withstands chlorine, salt, and pool chemicals without degradation.
- Drop-in installation. No tools required. Remove old cartridge, insert new one.
- Rotation-ready. Buy two and rotate for uninterrupted filtration and extended cartridge life.
Installation Guide
- Switch off your pool pump and release pressure from the filter system.
- Remove the filter tank lid or clamp band (refer to your CS100 manual).
- Lift out the old filter cartridge.
- Rinse the filter tank interior to remove settled debris.
- Drop in the new cartridge and ensure it seats properly on the base.
- Replace lid, tighten clamp, restart pump, and check for leaks.
- Open air relief valve until water flows steadily, then close.
Maintenance and Care
- Every 2-4 weeks. Rinse cartridge with a garden hose to remove surface debris. More frequently during heavy use or after storms.
- Every 3-6 months. Deep clean with a specialised filter cartridge cleaner. Soak overnight for best results.
- Monitor pressure. When filter pressure rises 8-10 PSI above clean baseline, clean the cartridge.
- Annual inspection. Check pleats for tears, wear, or compression. Replace if damaged.
Pro tip: Keep two cartridges in rotation. While one is filtering, clean and dry the other. This extends cartridge life and ensures your pool is never without filtration.
When to Replace Your Filter Cartridge
- Reduced water flow that persists after cleaning
- Persistent cloudiness despite regular maintenance
- Visible pleat damage, tears, or compression
- After 12-18 months of use
Recommended Accessories
- Zodiac Filter Cartridge Cleaner 1kg for deep cleaning and extending cartridge life.
- 5-in-1 Pool Test Strips for testing water chemistry after filter maintenance.
Pickup and Delivery
Perfect Pools Service Warehouse, 15C Douglas Alexander Parade, Albany
Hours: Mon-Fri 9am-4pm | Sat 10am-2pm | Sun Closed
Same-day dispatch on orders placed before 2pm weekdays. NZ-wide delivery 1-3 business days.
Contact us or email perfectpoolsnz@gmail.com
Frequently Asked Questions
Q: Will this fit my Zodiac CS100 system?

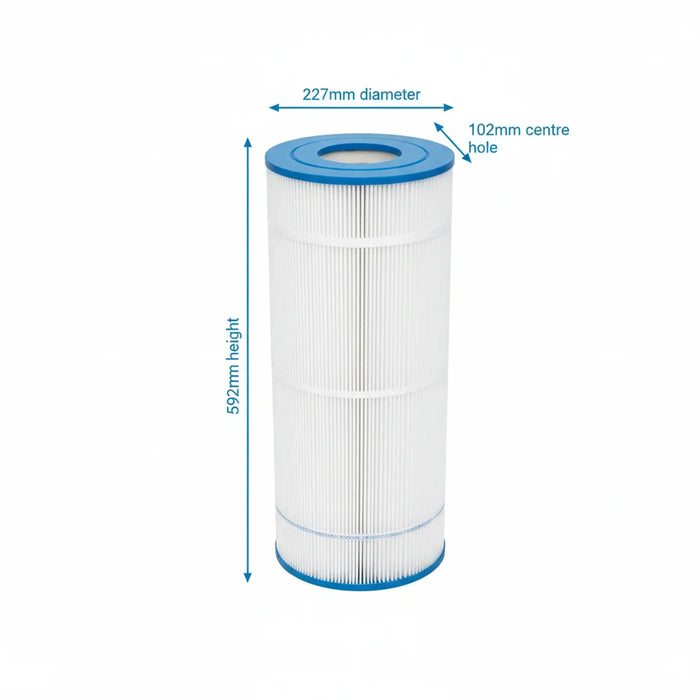

A: Yes. This cartridge is manufactured to exact OEM specifications for Zodiac CS100 and Jandy CS100 systems. Confirm your filter dimensions (227mm diameter, 592mm length, 102mm centre hole) before ordering.
Q: Can I clean and reuse this cartridge?
A: Yes. Rinse every 2-4 weeks and deep clean every 3-6 months to maximise lifespan. Replace after 12-18 months or when pleats show visible damage.
Q: How do I know when to replace rather than clean?
A: Replace when you notice persistent cloudiness after cleaning, visible pleat damage, or after 12-18 months of use regardless of condition.
Q: Do you offer trade pricing for multiple units?
A: Yes. Contact us for trade pricing on bulk orders.
Q: How long does delivery take?
A: Same-day dispatch on orders before 2pm weekdays. Most NZ addresses receive within 1-3 business days. Rural areas may take 3-5 days.
Q: Not sure if this fits your system?
A: Contact us with your filter brand and model and we'll confirm compatibility before you order.
